Casement Windows & Doors

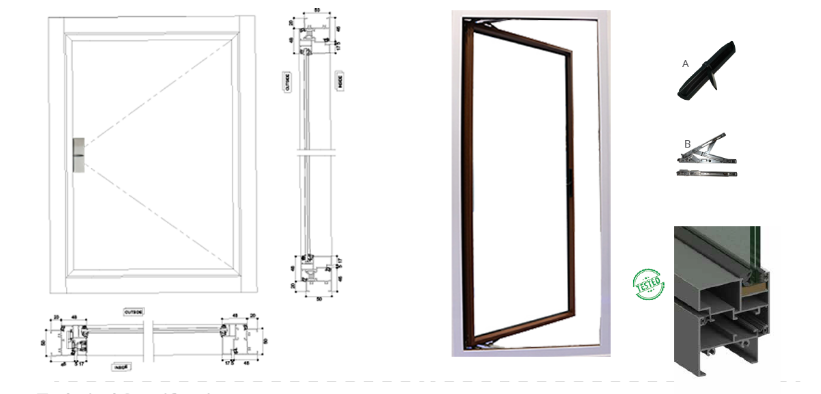

Slimo Casement
Technical Specifications
- Equipped with concealed handle, no fitting is visible from inside
- Superior strength of window profile even while being extremely narrow
- Slim Profile provides wider horizon for clear view and larger area ventilation
- High securly friction hinges load bearing capacity upto 80kg
- Sealing Gasket combination of EPDM with foam to achieve better air, noise and water insulation from inside.
- Special rotary transmission hardare for convenient operation & handling
- Provision of integrated mosquito nets
- Hardware Options: (A) Multi point lock pull handle (B) Friction Hinges
52EG Casement Window
Technical Specifications
- Maximum Shutter Dimensions 900mm x1800mm
- Two Point locking available
- Options for Single/Double shutter and combinations of openable
- Hair Line corner joints possible with the help of spring loaded corner cleat
- European make special butt hinges for higher load carrying capacity
- Hardware Options: (A) Multi Point Lock OP-1 (B) Multi Point Lock OP-2 (C) Friction Hinges
52EG Casement Door
Technical Specifications
- Maximum Shutter Dimensions 900mm x3000mm
- Possibility to fit Mortise lock with cylinder and spring loaded handle for doors
- Maximum Glass Thickness 24mm
- Two point locking available
- Single/Double Shutter available
- Profiles compatible for Euro Groove Hardware
- Special heavy and light duty butt hinges for carrying capacity
- Hardware Options: (A) Mortise Lock (B) Butt Hinges
- Single/Double Glass available
40MM Casement Window w/o Beading
Technical Specifications
- Maximum Shutter Dimensions 800mm x1600mm
- Two Point locking available
- Options for Single/Double shutter and combinations of openable and fixed
- Bigger sections for transom and bottom cill available
- Profiles compatible for Euro Groove Hardware
- European make special butt hinges for higher load carrying capacity
- Hair Line corner joints possible with the help of spring loaded corner cleat
- Hardware Options: (A) Multi Point Lock (B) Friction Hinges (C) Butt Hinges
40MM Casement Window
Technical Specifications
- Maximum Shutter Dimensions 800mm x1600mm
- Two Point locking available
- Options for Single/Double shutter and combinations of openable
- Hair Line corner joints possible with the help of spring loaded corner cleat
- Bigger sections for transom and bottom cill available
- Profiles compatible for Euro Groove Hardware
- European make special butt hinges for higher load carrying capacity
- Hardware Options: (A) Multi Point Lock (B) Friction Hinges (C) Butt Hinges
40MM Door
Technical Specifications
- Maximum Shutter Dimensions 900mm x2200mm
- Two Point locking available
- Options for Single/Double shutter and combinations of openable
- Hair Line corner joints possible with the help of spring loaded corner cleat
- Possibility to fit Mortise lock with cylinder and spring loaded handle for doors
- European make special butt hinges for higher load carrying capacity
- Hardware Options: (A) Mortise Lock
29mm Casement Window
Technical Specifications
- Maximum Shutter Dimensions 750mm x1200mm
- Maximum Glass Thickness 6mm
- Hardware combination available with single point handle and friction hinges
- Ideal to be used as bathroom windows
- Hardware Options: (A) Single Point Lock
Shade Cards
-
Anodising :-
-
Powder Coating :-
